Creating Healthier Indoor Air Quality

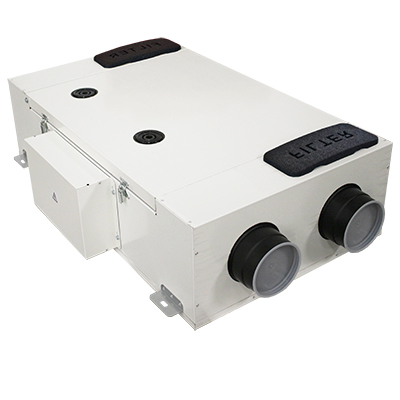

AeroFresh 180
Heat Recovery Unit
The Aerofresh 180 heat recovery system provides maximum comfort and healthier living spaces in buildings with high ventilation requirements. It uses a high efficiency counter-flow heat exchanger that can recover up to 82% of heat.
Centralised Heat Recovery for Restricted Spaces
The Aerofresh 180 is a compact, energy efficient heat recovery ventilation system that is well suited to horizontal ceiling or false-ceiling mounted installations.
Aerofresh provides a healthier, well ventilated indoor space with simple and quiet operation. It recovers thermal energy from the exhausted air of wet rooms such as kitchens and bathrooms that would otherwise be expended. This heat is then transferred to the fresh, filtered supply air drawn in from outside.
It is achieved by using a highly efficient counter-flow heat exchanger which recovers up to 82 % of heat.

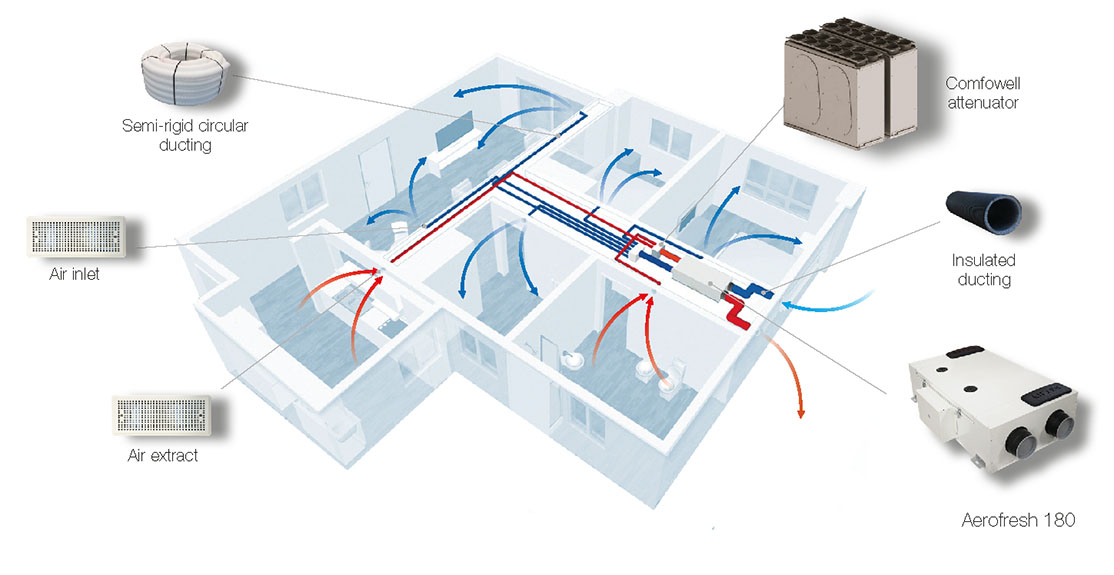

Ventilation System Example
Application:
New build.
How it works:
A continuously operating Aerofresh 180 heat recovery unit transfers heat from humid air extracted from wet rooms to warm incoming fresh air during winter which is ducted to habitable rooms. In summer the reverse process occurs with cooler indoor air being extracted, cooling the incoming fresh air.
Thanks to the easy-to-fit air distribution system, each room can be ventilated to achieve excellent indoor air quality.The boost function enables rapid extract of increased moisture or pollutant levels. It also provides discrete installation and quite operation.
Energy saving:
The preheated/precooled fresh air and continuous air changes reduce the demand for additional heating/air-conditioning.
The EC brushless motors significantly reduce the energy consumption.
Indoor Air Quality:
A correctly specified mechanical ventilation system can ensure the quality of the indoor air is constantly maintained for the health and well-being of the occupants as well as of the building.Duly maintained filters ensure that incoming air is suitably filtered of dust and pollen before if enters the home

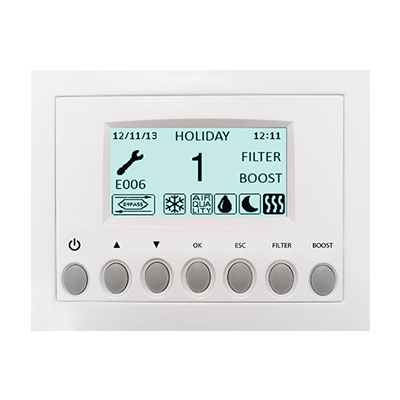

Aerofresh 180 Controller
Multi-function remote control panel with LCD display, supplied as standard with the Aerofresh 180.
Features
Specifications
- Internal body - EPP (Polythlene)
- Unit housing - Painted Galvanised Steel
Technical Data
| Operating Speed | 40% | 60% | 80% | 100% |
|---|---|---|---|---|
| Intake | 24 | 34 | 41 | 45 |
| Supply | 21 | 30 | 37 | 41 |
| Extract | 21 | 30 | 37 | 41 |
| Exhaust | 26 | 34 | 40 | 44 |
| Breakout | 21 | 29 | 37 | 41 |
* Sound Pressure level @ 3m in free field
A - Intake air from outside
B - Exhaust air to outside
C - Supply air to inside
D - Extract air from inside
E - Winter condensation drainage
F - Summer condensation drainage

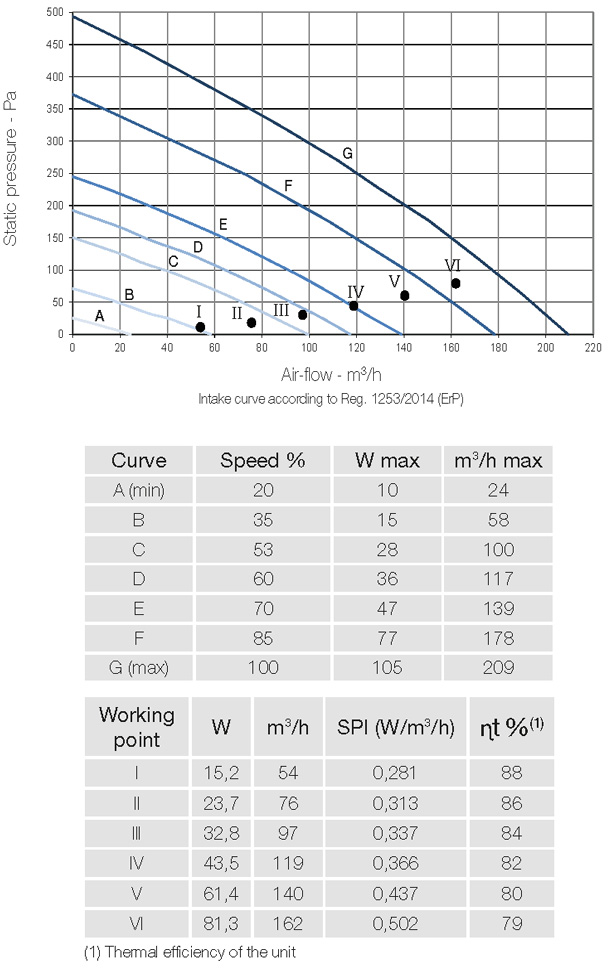

Performance Curve

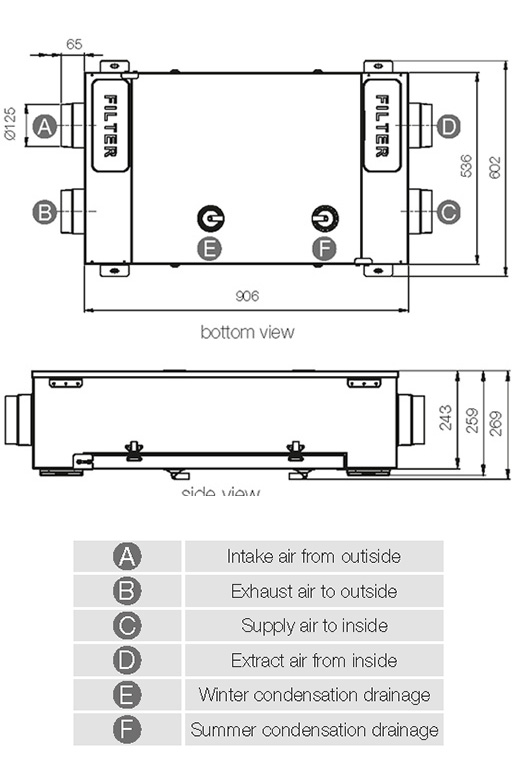

Dimensional Data
AeroFresh 180
Heat Recovery Unit- Home /
- Product List (HRV) /
- AeroFresh 180
